Mybatis代理方式的增删改查

代理开发方式介绍
增删改查的实现
总结

代理开发方式介绍

采用 Mybatis 的代理开发方式实现 DAO 层的开发，这种方式是我们后面进入企业的主流。

Mapper 接口开发方法只需要程序员编写Mapper 接口（相当于Dao 接口），由Mybatis 框架根据接口定义创建接口的动态代理对象，代理对象的方法体同上边Dao接口实现类方法。

Mapper 接口开发需要遵循以下规范：

1) Mapper.xml文件中的namespace与mapper接口的全限定名相同

2) Mapper接口方法名和Mapper.xml中定义的每个statement的id相同

3) Mapper接口方法的输入参数类型和mapper.xml中定义的每个sql的parameterType的类型相同

4) Mapper接口方法的输出参数类型和mapper.xml中定义的每个sql的resultType的类型相同

增删改查的实现

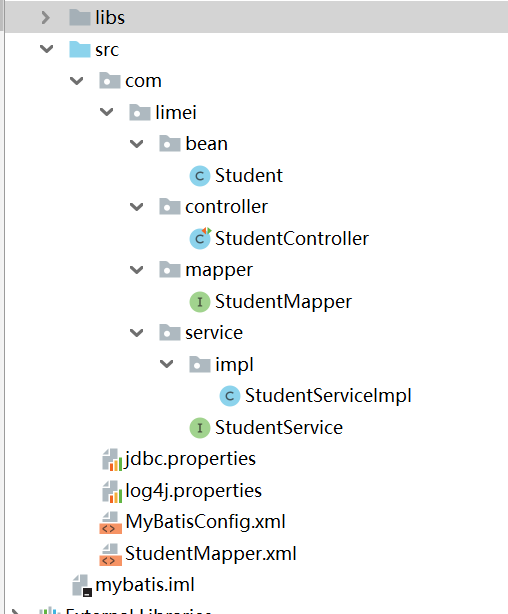

*** 案例目录结构 ***

该案例和《Mybatis的基本使用》使用的是同一个数据库以及实体类

1.编写StudentController类
 2.编写StudentMapper接口
 3.编写StudentService接口
 4.编写StudentServiceImpl类
 5.编写StudentMapper.xml文件

编写StudentController类

package com.limei.controller;


import com.limei.bean.Student;
import com.limei.service.StudentService;
import com.limei.service.impl.StudentServiceImpl;
import org.junit.Test;

import java.text.ParseException;
import java.text.SimpleDateFormat;
import java.util.ArrayList;
import java.util.Date;
import java.util.List;

/*
    控制层测试类
 */
public class StudentController {
    //创建业务层对象
    private StudentService service = new StudentServiceImpl ();

    //String类型转换为Date类型
    public Date conversionDate(String s){
        String str =s;
        Date date=null;
        SimpleDateFormat sdf=null;
        try {
            sdf = new SimpleDateFormat ( "yyyy-MM-dd" );
             date = sdf.parse ( str );
        } catch (ParseException e) {
            e.printStackTrace ();
        }
        return date;
    }

    //查询全部功能测试
    @Test
    public void selectAll() {
        List<Student> students = service.selectAll();
        for (Student stu : students) {
            System.out.println(stu);
        }
    }

    //根据id查询功能测试
    @Test
    public void selectById() {
        Student stu = service.selectById("10001");
        System.out.println(stu);
    }

    //新增功能测试
    @Test
    public void insert() {
        Date date = conversionDate ( "2011-09-01" );
        Student stu = new Student("10010","赵六",date,"上海市");
            Integer result = service.insert(stu);
            System.out.println(result);
    }

    //修改功能测试
    @Test
    public void update() {
        Date date = conversionDate ( "2011-09-01" );
        Student stu = new Student("10010","赵五",date,"上海市");
        Integer result = service.update(stu);
        System.out.println(result);
    }

    //删除功能测试
    @Test
    public void delete() {
        Integer result = service.delete("10010");
        System.out.println(result);
    }

    //    多条件查询
    @Test
    public void selectCondition(){
        Student stu = new Student();
        stu.setId("10002");
        stu.setName("李四");
        List<Student> list = service.selectCondition ( stu );

        //6.处理结果
        for (Student student : list) {
            System.out.println(student);
        }

    }

    //根据多个id查询
    @Test
    public void selectByIds(){
        List<String> ids = new ArrayList<> ();
        ids.add("10001");
        ids.add("10002");
        ids.add("10003");
        List<Student> list = service.selectByIds ( ids );
        for (Student student:list){
            System.out.println (student);
        }
    }
}

编写StudentMapper接口

package com.limei.mapper;

import com.limei.bean.Student;

import java.util.List;

public interface StudentMapper {
    //查询全部
    public abstract List<Student> selectAll();

    //根据id查询
    public abstract Student selectById(String id);

    //新增数据
    public abstract Integer insert(Student stu);

    //修改数据
    public abstract Integer update(Student stu);

    //删除数据
    public abstract Integer delete(String id);

    //多条件查询
    public abstract List<Student> selectCondition(Student stu);

    //根据多个id查询
    public abstract List<Student> selectByIds(List<String> ids);

}

编写StudentService接口

package com.limei.service;

import com.limei.bean.Student;

import java.util.List;

/*
    业务层接口
 */
public interface StudentService {
    //查询全部
    public abstract List<Student> selectAll();

    //根据id查询
    public abstract Student selectById(String id);

    //新增数据
    public abstract Integer insert(Student stu);

    //修改数据
    public abstract Integer update(Student stu);

    //删除数据
    public abstract Integer delete(String id);

    //多条件查询
    public abstract List<Student> selectCondition(Student stu);

    //根据多个id查询
    public abstract List<Student> selectByIds(List<String> ids);
}

编写StudentServiceImpl类

package com.limei.service.impl;


import com.limei.bean.Student;
import com.limei.mapper.StudentMapper;
import com.limei.service.StudentService;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;

import java.io.IOException;
import java.io.InputStream;
import java.util.ArrayList;
import java.util.List;
/*
    业务层实现类
 */
public class StudentServiceImpl implements StudentService {

    //查询全部
    @Override
    public List<Student> selectAll() {
        List<Student> list = null;
        SqlSession sqlSession = null;
        InputStream is = null;
        try{
            //1.加载核心配置文件
            is = Resources.getResourceAsStream("MyBatisConfig.xml");
            System.out.println (is);
            //2.获取SqlSession工厂对象
            SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(is);

            //3.通过工厂对象获取SqlSession对象
            sqlSession = sqlSessionFactory.openSession(true);

            //4.获取StudentMapper接口的实现类对象
            StudentMapper mapper = sqlSession.getMapper(StudentMapper.class); // StudentMapper mapper = new StudentMapperImpl();

            //5.通过实现类对象调用方法，接收结果
            list = mapper.selectAll();

        } catch (Exception e) {

        } finally {
            //6.释放资源
            if(sqlSession != null) {
                sqlSession.close();
            }
            if(is != null) {
                try {
                    is.close();
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
        }

        //7.返回结果
        return list;
    }

    @Override
    public Student selectById(String id) {
        Student stu = null;
        SqlSession sqlSession = null;
        InputStream is = null;
        try{
            //1.加载核心配置文件
            is = Resources.getResourceAsStream("MyBatisConfig.xml");

            //2.获取SqlSession工厂对象
            SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(is);

            //3.通过工厂对象获取SqlSession对象
            sqlSession = sqlSessionFactory.openSession(true);

            //4.获取StudentMapper接口的实现类对象
            StudentMapper mapper = sqlSession.getMapper(StudentMapper.class); // StudentMapper mapper = new StudentMapperImpl();

            //5.通过实现类对象调用方法，接收结果
            stu = mapper.selectById(id);

        } catch (Exception e) {

        } finally {
            //6.释放资源
            if(sqlSession != null) {
                sqlSession.close();
            }
            if(is != null) {
                try {
                    is.close();
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
        }

        //7.返回结果
        return stu;
    }

    @Override
    public Integer insert(Student stu) {
        Integer result = null;
        SqlSession sqlSession = null;
        InputStream is = null;
        try{
            //1.加载核心配置文件
            is = Resources.getResourceAsStream("MyBatisConfig.xml");

            //2.获取SqlSession工厂对象
            SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(is);

            //3.通过工厂对象获取SqlSession对象
            sqlSession = sqlSessionFactory.openSession(true);

            //4.获取StudentMapper接口的实现类对象
            StudentMapper mapper = sqlSession.getMapper(StudentMapper.class); // StudentMapper mapper = new StudentMapperImpl();

            //5.通过实现类对象调用方法，接收结果
            result = mapper.insert(stu);

        } catch (Exception e) {

        } finally {
            //6.释放资源
            if(sqlSession != null) {
                sqlSession.close();
            }
            if(is != null) {
                try {
                    is.close();
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
        }

        //7.返回结果
        return result;
    }

    @Override
    public Integer update(Student stu) {
        Integer result = null;
        SqlSession sqlSession = null;
        InputStream is = null;
        try{
            //1.加载核心配置文件
            is = Resources.getResourceAsStream("MyBatisConfig.xml");

            //2.获取SqlSession工厂对象
            SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(is);

            //3.通过工厂对象获取SqlSession对象
            sqlSession = sqlSessionFactory.openSession(true);

            //4.获取StudentMapper接口的实现类对象
            StudentMapper mapper = sqlSession.getMapper(StudentMapper.class); // StudentMapper mapper = new StudentMapperImpl();

            //5.通过实现类对象调用方法，接收结果
            result = mapper.update(stu);

        } catch (Exception e) {

        } finally {
            //6.释放资源
            if(sqlSession != null) {
                sqlSession.close();
            }
            if(is != null) {
                try {
                    is.close();
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
        }

        //7.返回结果
        return result;
    }

    @Override
    public Integer delete(String id) {
        Integer result = null;
        SqlSession sqlSession = null;
        InputStream is = null;
        try{
            //1.加载核心配置文件
            is = Resources.getResourceAsStream("MyBatisConfig.xml");

            //2.获取SqlSession工厂对象
            SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(is);

            //3.通过工厂对象获取SqlSession对象
            sqlSession = sqlSessionFactory.openSession(true);

            //4.获取StudentMapper接口的实现类对象
            StudentMapper mapper = sqlSession.getMapper(StudentMapper.class); // StudentMapper mapper = new StudentMapperImpl();

            //5.通过实现类对象调用方法，接收结果
            result = mapper.delete(id);

        } catch (Exception e) {

        } finally {
            //6.释放资源
            if(sqlSession != null) {
                sqlSession.close();
            }
            if(is != null) {
                try {
                    is.close();
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
        }

        //7.返回结果
        return result;
    }

    //多条件查询
    @Override
    public List<Student> selectCondition(Student stu) {

        List<Student> list=null;
        SqlSession sqlSession = null;
        InputStream is = null;
        try{
            //1.加载核心配置文件
            is = Resources.getResourceAsStream("MyBatisConfig.xml");

            //2.获取SqlSession工厂对象
            SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(is);

            //3.通过工厂对象获取SqlSession对象
            sqlSession = sqlSessionFactory.openSession(true);

            //4.获取StudentMapper接口的实现类对象
            StudentMapper mapper = sqlSession.getMapper(StudentMapper.class); // StudentMapper mapper = new StudentMapperImpl();

            //5.通过实现类对象调用方法，接收结果
            list = mapper.selectCondition ( stu );

        } catch (Exception e) {

        } finally {
            //6.释放资源
            if(sqlSession != null) {
                sqlSession.close();
            }
            if(is != null) {
                try {
                    is.close();
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
        }

        //7.返回结果
        return list;
    }


    //根据多个id查询
    @Override
    public List<Student> selectByIds(List<String> ids) {
        List<Student> list = null;
        SqlSession sqlSession = null;
        InputStream is = null;
        try{
            //1.加载核心配置文件
            is = Resources.getResourceAsStream("MyBatisConfig.xml");

            //2.获取SqlSession工厂对象
            SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(is);

            //3.通过工厂对象获取SqlSession对象
            sqlSession = sqlSessionFactory.openSession(true);

            //4.获取StudentMapper接口的实现类对象
            StudentMapper mapper = sqlSession.getMapper(StudentMapper.class); // StudentMapper mapper = new StudentMapperImpl();

            //5.通过实现类对象调用方法，接收结果
            list = mapper.selectByIds ( ids );

        } catch (Exception e) {

        } finally {
            //6.释放资源
            if(sqlSession != null) {
                sqlSession.close();
            }
            if(is != null) {
                try {
                    is.close();
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
        }

        //7.返回结果
        return list;
    }




}

编写StudentMapper.xml文件

<?xml version="1.0" encoding="UTF-8" ?>
<!--MyBatis的DTD约束-->
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<!--
    mapper：核心根标签
    namespace属性：名称空间
-->
<mapper namespace="com.limei.mapper.StudentMapper">
    <!--
        select：查询功能的标签
        id属性：唯一标识
        resultType属性：指定结果映射对象类型
        parameterType属性：指定参数映射对象类型
    -->
    <select id="selectAll" resultType="student">
        SELECT * FROM student
    </select>

    <select id="selectById" resultType="student" parameterType="String">
        SELECT * FROM student WHERE id = #{id}
    </select>

    <insert id="insert" parameterType="student">
        INSERT INTO student VALUES (#{id},#{name},#{birthday},#{address})
    </insert>

    <update id="update" parameterType="student">
        UPDATE student SET name = #{name},birthday = #{birthday},address=#{address} WHERE id = #{id}
    </update>

    <delete id="delete" parameterType="String">
        DELETE FROM student WHERE id = #{id}
    </delete>

    <!--
        <where>：条件标签。如果有动态条件，则使用该标签代替 where 关键字。
        <if>：条件判断标签。
            <if test=“条件判断”>
            查询条件拼接
        </if>
    -->

    <select id="selectCondition" resultType="student" parameterType="student">
        SELECT * FROM student
        <where>
            <if test="id != null">
                id = #{id}
            </if>
            <if test="name != null">
                AND name = #{name}
            </if>

        </where>
    </select>

    <!--
           属性
                collection：参数容器类型， (list-集合， array-数组)。
                open：开始的 SQL 语句。
                close：结束的 SQL 语句。
                item：参数变量名。
                separator：分隔符。
       -->
    <select id="selectByIds" resultType="student" parameterType="list">
        SELECT * FROM student
        <where>
            <foreach collection="list" open="id IN (" close=")" item="id" separator=",">
                #{id}
            </foreach>
        </where>
    </select>


</mapper>

总结

此目录缺失的文件去Mybatis的基本使用中去寻找

接口代理方式可以让我们只编写接口即可，而实现类对象由 MyBatis 生成。

实现规则：

映射配置文件中的名称空间必须和 Dao 层接口的全类名相同。
映射配置文件中的增删改查标签的 id 属性必须和 Dao 层接口的方法名相同。
映射配置文件中的增删改查标签的 parameterType 属性必须和 Dao 层接口方法的参数相同。
映射配置文件中的增删改查标签的 resultType 属性必须和 Dao 层接口方法的返回值相同。 
获取动态代理对象 SqlSession 功能类中的 getMapper() 方法。

Mybatis代理方式的增删改查

代理开发方式介绍

增删改查的实现

评论 (0)
