MyBatis 注解开发的多表操作02

limei
limei
2023-08-01 / 0 评论 / 8 阅读 / 正在检测是否收录...

需要的sql下载： 一对一 一对多 多对多

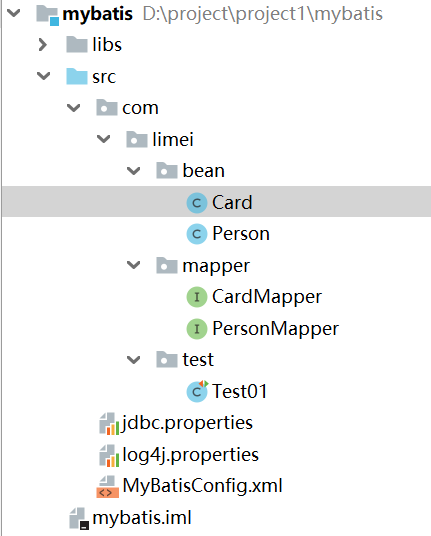

案例目录结构(一对一的)

目录结构配置文件参考：Mybatis的基本使用

注意：MyBatisConfig.xml配置文件里里替换成

  <typeAliases>
        <!--<typeAlias type="com.limei.bean.Card" alias="card"/>-->
        <package name="com.itheima"/>
    </typeAliases>

一对一查询

一对一查询的需求：查询一个用户信息，与此同时查询出该用户对应的身份证信息

Card实体类

package com.limei.bean;

public class Card {
    private Integer id;     //主键id
    private String number;  //身份证号

    private Person p;       //所属人的对象

    public Card() {
    }

    public Card(Integer id, String number, Person p) {
        this.id = id;
        this.number = number;
        this.p = p;
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getNumber() {
        return number;
    }

    public void setNumber(String number) {
        this.number = number;
    }

    public Person getP() {
        return p;
    }

    public void setP(Person p) {
        this.p = p;
    }

    @Override
    public String toString() {
        return "Card{" +
                "id=" + id +
                ", number='" + number + '\'' +
                ", p=" + p +
                '}';
    }
}

Person实体类

package com.limei.bean;

public class Person {
    private Integer id;     //主键id
    private String name;    //人的姓名
    private Integer age;    //人的年龄

    public Person() {
    }

    public Person(Integer id, String name, Integer age) {
        this.id = id;
        this.name = name;
        this.age = age;
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    @Override
    public String toString() {
        return "Person{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", age=" + age +
                '}';
    }
}

PersonMapper接口

package com.limei.mapper;


import com.limei.bean.Person;
import org.apache.ibatis.annotations.Select;

public interface PersonMapper {
    //根据id查询
    @Select("SELECT * FROM person WHERE id=#{id}")
    public abstract Person selectById(Integer id);
}

CardMapper接口

package com.limei.mapper;

import com.limei.bean.Card;
import com.limei.bean.Person;
import org.apache.ibatis.annotations.One;
import org.apache.ibatis.annotations.Result;
import org.apache.ibatis.annotations.Results;
import org.apache.ibatis.annotations.Select;

import java.util.List;

public interface CardMapper {
    //查询全部
    @Select("SELECT * FROM card")
    @Results({
            @Result(column = "id",property = "id"),
            @Result(column = "number",property = "number"),
            @Result(
                    property = "p",             // 被包含对象的变量名
                    javaType = Person.class,    // 被包含对象的实际数据类型
                    column = "pid",             // 根据查询出的card表中的pid字段来查询person表
                    /*
                        one、@One 一对一固定写法
                        select属性：指定调用哪个接口中的哪个方法
                     */
                    one = @One(select = "com.limei.mapper.PersonMapper.selectById")
            )
    })
    public abstract List<Card> selectAll();
}

Test01测试类

package com.limei.test;

import com.limei.bean.Card;
import com.limei.mapper.CardMapper;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.junit.Test;

import java.io.InputStream;
import java.util.List;

public class Test01 {
    @Test
    public void selectAll() throws Exception{
        //1.加载核心配置文件
        InputStream is = Resources.getResourceAsStream("MyBatisConfig.xml");

        //2.获取SqlSession工厂对象
        SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(is);

        //3.通过工厂对象获取SqlSession对象
        SqlSession sqlSession = sqlSessionFactory.openSession(true);

        //4.获取CardMapper接口的实现类对象
        CardMapper mapper = sqlSession.getMapper(CardMapper.class);

        //5.调用实现类对象中的方法，接收结果
        List<Card> list = mapper.selectAll();

        //6.处理结果
        for (Card card : list) {
            System.out.println(card);
        }

        //7.释放资源
        sqlSession.close();
        is.close();
    }

}

一对多查询

一对多查询的需求：查询一个班级，与此同时查询出该班级对应的学生信息

Classes实体类

package com.limei.bean;

import java.util.List;

public class Classes {
    private Integer id;     //主键id
    private String name;    //班级名称

    private List<Student> students; //班级中所有学生对象

    public Classes() {
    }

    public Classes(Integer id, String name, List<Student> students) {
        this.id = id;
        this.name = name;
        this.students = students;
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public List<Student> getStudents() {
        return students;
    }

    public void setStudents(List<Student> students) {
        this.students = students;
    }

    @Override
    public String toString() {
        return "Classes{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", students=" + students +
                '}';
    }
}

Student实体类

package com.limei.bean;

import java.util.List;

public class Student {
    private Integer id;     //主键id
    private String name;    //学生姓名
    private Integer age;    //学生年龄

    public Student() {
    }

    public Student(Integer id, String name, Integer age) {
        this.id = id;
        this.name = name;
        this.age = age;

    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    @Override
    public String toString() {
        return "Student{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", age=" + age +
                '}';
    }
}

StudentMapper接口

package com.limei.mapper;

import com.limei.bean.Student;
import org.apache.ibatis.annotations.Select;

import java.util.List;

public interface StudentMapper {
    //根据cid查询student表
    @Select("SELECT * FROM student WHERE cid=#{cid}")
    public abstract List<Student> selectByCid(Integer cid);
}

ClassesMapper接口

package com.limei.mapper;

import com.limei.bean.Classes;
import org.apache.ibatis.annotations.Many;
import org.apache.ibatis.annotations.Result;
import org.apache.ibatis.annotations.Results;
import org.apache.ibatis.annotations.Select;

import java.util.List;

public interface ClassesMapper {
    //查询全部
    @Select("SELECT * FROM classes")
    @Results({
            @Result(column = "id",property = "id"),
            @Result(column = "name",property = "name"),
            @Result(
                    property = "students",  // 被包含对象的变量名
                    javaType = List.class,  // 被包含对象的实际数据类型
                    column = "id",          // 根据查询出的classes表的id字段来查询student表
                    /*
                        many、@Many 一对多查询的固定写法
                        select属性：指定调用哪个接口中的哪个查询方法
                     */
                    many = @Many(select = "com.limei.mapper.StudentMapper.selectByCid")
            )
    })
    public abstract List<Classes> selectAll();
}

Test01测试类

package com.limei.test;

import com.limei.bean.Classes;
import com.limei.bean.Student;
import com.limei.mapper.ClassesMapper;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.junit.Test;

import java.io.InputStream;
import java.util.List;

public class Test01 {
    @Test
    public void selectAll() throws Exception{
        //1.加载核心配置文件
        InputStream is = Resources.getResourceAsStream("MyBatisConfig.xml");

        //2.获取SqlSession工厂对象
        SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(is);

        //3.通过工厂对象获取SqlSession对象
        SqlSession sqlSession = sqlSessionFactory.openSession(true);

        //4.获取ClassesMapper接口的实现类对象
        ClassesMapper mapper = sqlSession.getMapper( ClassesMapper.class);

        //5.调用实现类对象中的方法，接收结果
        List<Classes> list = mapper.selectAll();

        //6.处理结果
        for (Classes cls : list) {
            System.out.println(cls.getId() + "," + cls.getName());
            List<Student> students = cls.getStudents();
            for (Student student : students) {
                System.out.println("\t" + student);
            }
        }

        //7.释放资源
        sqlSession.close();
        is.close();
    }

}

多对多查询

多对多查询的需求：查询学生以及所对应的课程信息

Course实体类

package com.limei.bean;

public class Course {
    private Integer id;     //主键id
    private String name;    //课程名称

    public Course() {
    }

    public Course(Integer id, String name) {
        this.id = id;
        this.name = name;
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    @Override
    public String toString() {
        return "Course{" +
                "id=" + id +
                ", name='" + name + '\'' +
                '}';
    }
}

Student实体类

package com.limei.bean;

import java.util.List;

public class Student {
    private Integer id;     //主键id
    private String name;    //学生姓名
    private Integer age;    //学生年龄

    private List<Course> courses;   //学生所选择的课程对象

    public Student() {
    }

    public Student(Integer id, String name, Integer age, List<Course> courses) {
        this.id = id;
        this.name = name;
        this.age = age;
        this.courses = courses;
    }

    public List<Course> getCourses() {
        return courses;
    }

    public void setCourses(List<Course> courses) {
        this.courses = courses;
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    @Override
    public String toString() {
        return "Student{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", age=" + age +
                '}';
    }
}

CourseMapper接口

package com.limei.mapper;
import com.limei.bean.Course;
import org.apache.ibatis.annotations.Select;

import java.util.List;

public interface CourseMapper {
    //根据学生id查询所选课程
    @Select("SELECT c.id,c.name FROM stu_cr sc,course c WHERE sc.cid=c.id AND sc.sid=#{id}")
    public abstract List<Course> selectBySid(Integer id);
}

StudentMapper接口

package com.limei.mapper;
import com.limei.bean.Student;
import org.apache.ibatis.annotations.Many;
import org.apache.ibatis.annotations.Result;
import org.apache.ibatis.annotations.Results;
import org.apache.ibatis.annotations.Select;
import java.util.List;

public interface StudentMapper {
    //查询全部
    @Select("SELECT DISTINCT s.id,s.name,s.age FROM student s,stu_cr sc WHERE sc.sid=s.id")
    @Results({
            @Result(column = "id",property = "id"),
            @Result(column = "name",property = "name"),
            @Result(column = "age",property = "age"),
            @Result(
                    property = "courses",   // 被包含对象的变量名
                    javaType = List.class,  // 被包含对象的实际数据类型
                    column = "id",          // 根据查询出student表的id来作为关联条件，去查询中间表和课程表
                    /*
                        many、@Many 一对多查询的固定写法
                        select属性：指定调用哪个接口中的哪个查询方法
                     */
                    many = @Many(select = "com.limei.mapper.CourseMapper.selectBySid")
            )
    })
    public abstract List<Student> selectAll();
}

Test01测试类

package com.limei.test;

import com.limei.bean.Course;
import com.limei.bean.Student;
import com.limei.mapper.StudentMapper;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.junit.Test;

import java.io.InputStream;
import java.util.List;

public class Test01 {
    @Test
    public void selectAll() throws Exception{
        //1.加载核心配置文件
        InputStream is = Resources.getResourceAsStream("MyBatisConfig.xml");

        //2.获取SqlSession工厂对象
        SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(is);

        //3.通过工厂对象获取SqlSession对象
        SqlSession sqlSession = sqlSessionFactory.openSession(true);

        //4.获取StudentMapper接口的实现类对象
        StudentMapper mapper = sqlSession.getMapper( StudentMapper.class);

        //5.调用实现类对象中的方法，接收结果
        List<Student> list = mapper.selectAll();

        //6.处理结果
        for (Student student : list) {
            System.out.println(student.getId() + "," + student.getName() + "," + student.getAge());
            List<Course> courses = student.getCourses();
            for (Course cours : courses) {
                System.out.println("\t" + cours);
            }
        }

        //7.释放资源
        sqlSession.close();
        is.close();
    }

}

配置总结

@Results：封装映射关系的父注解。
    Result[] value()：定义了 Result 数组
@Result：封装映射关系的子注解。
    column 属性：查询出的表中字段名称
    property 属性：实体对象中的属性名称
    javaType 属性：被包含对象的数据类型
    one 属性：一对一查询固定属性
 @One：一对一查询的注解。
    select 属性：指定调用某个接口中的方法
 @Many：一对多查询的注解。
    select 属性：指定调用某个接口中的方法
0
暂无标签
版权属于： limei
本文链接： https://ggxiaolin.eu.org/index.php/archives/20/
作品采用： 《 署名-非商业性使用-相同方式共享 4.0 国际 (CC BY-NC-SA 4.0) 》许可协议授权

评论 (0)

取消
